CC2540 CC2541 USB encryption btool BLE Bluetooth 4.0 Data Analysis Protocol Debugging Assistant

Description

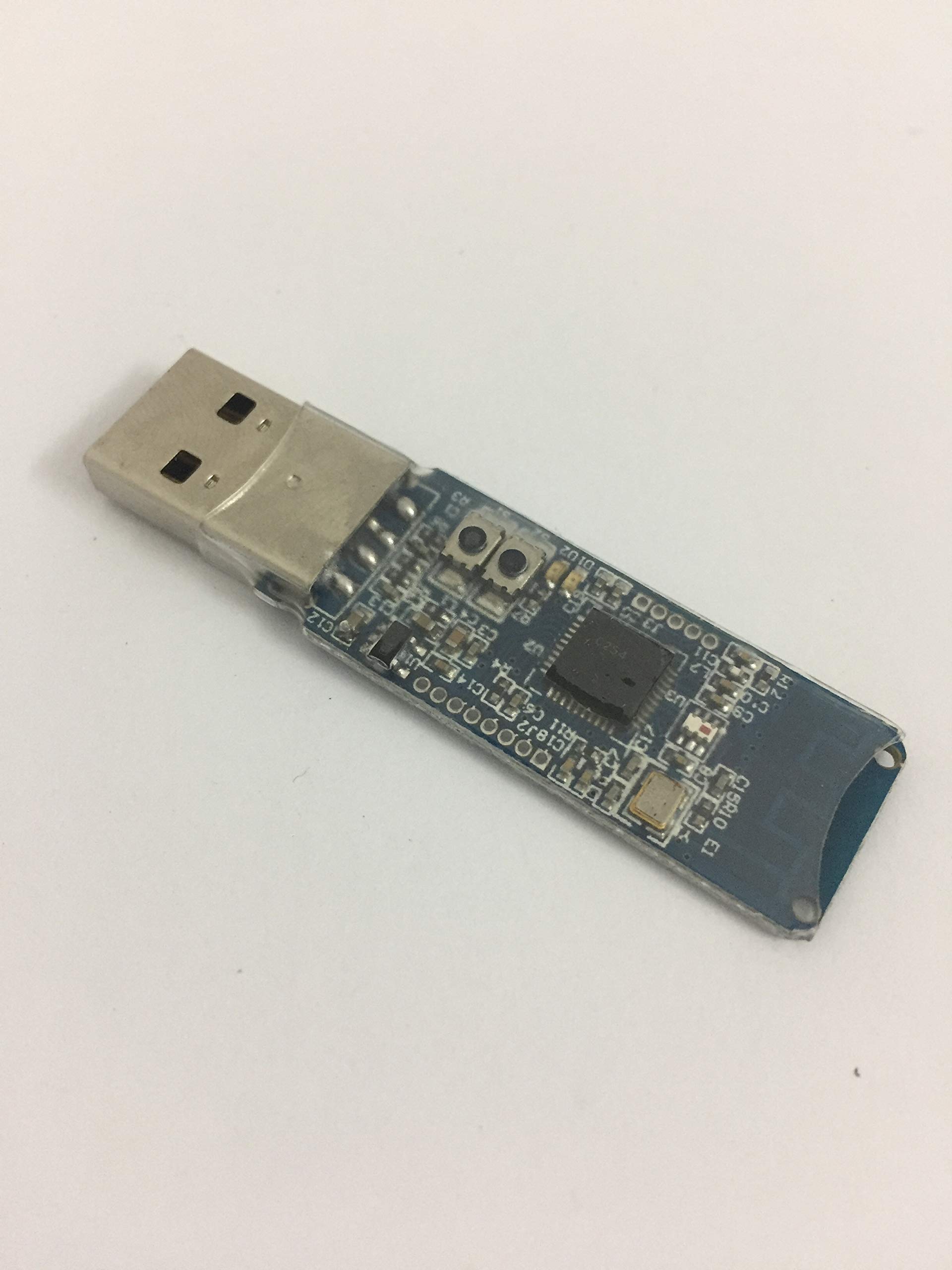

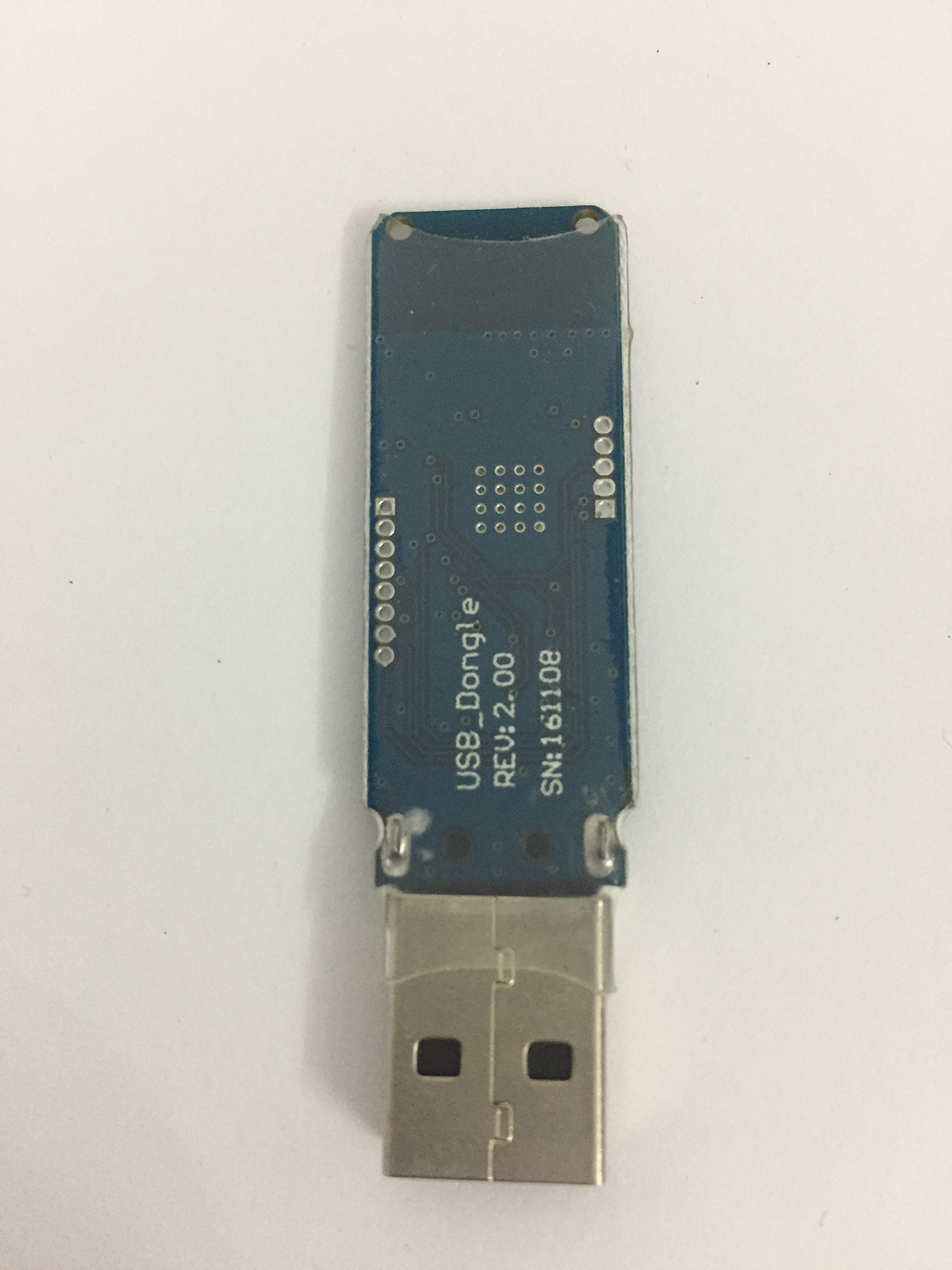

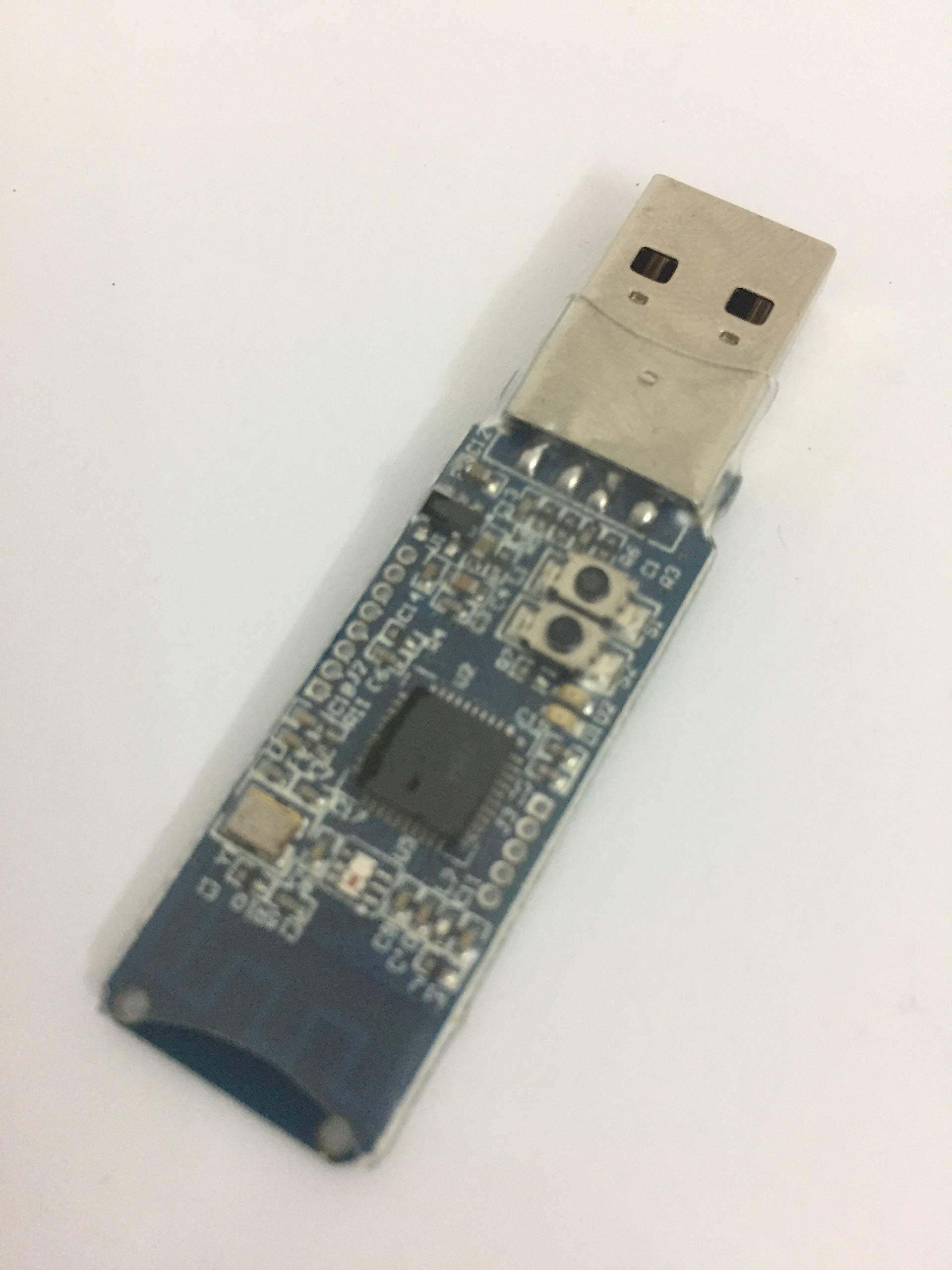

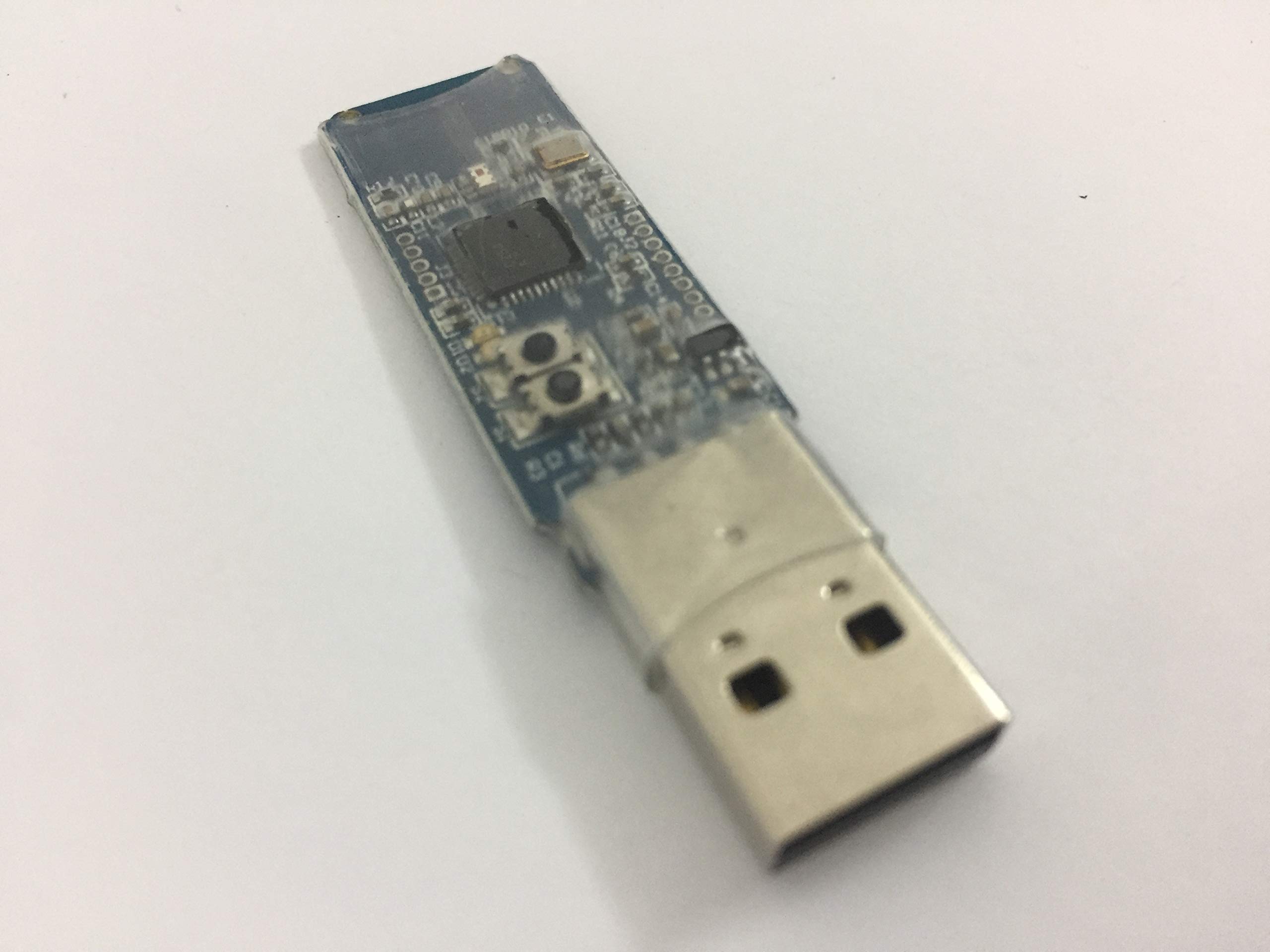

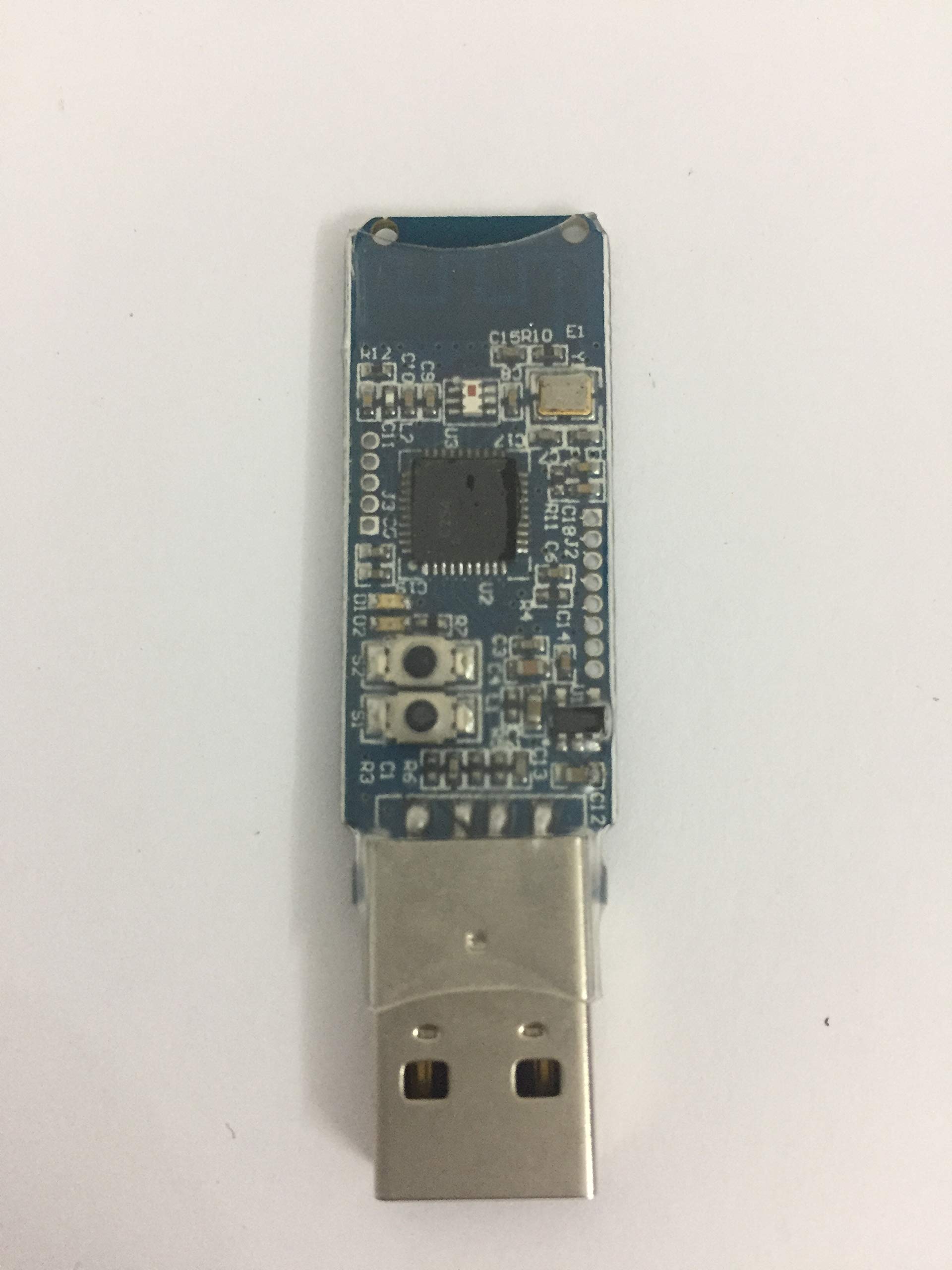

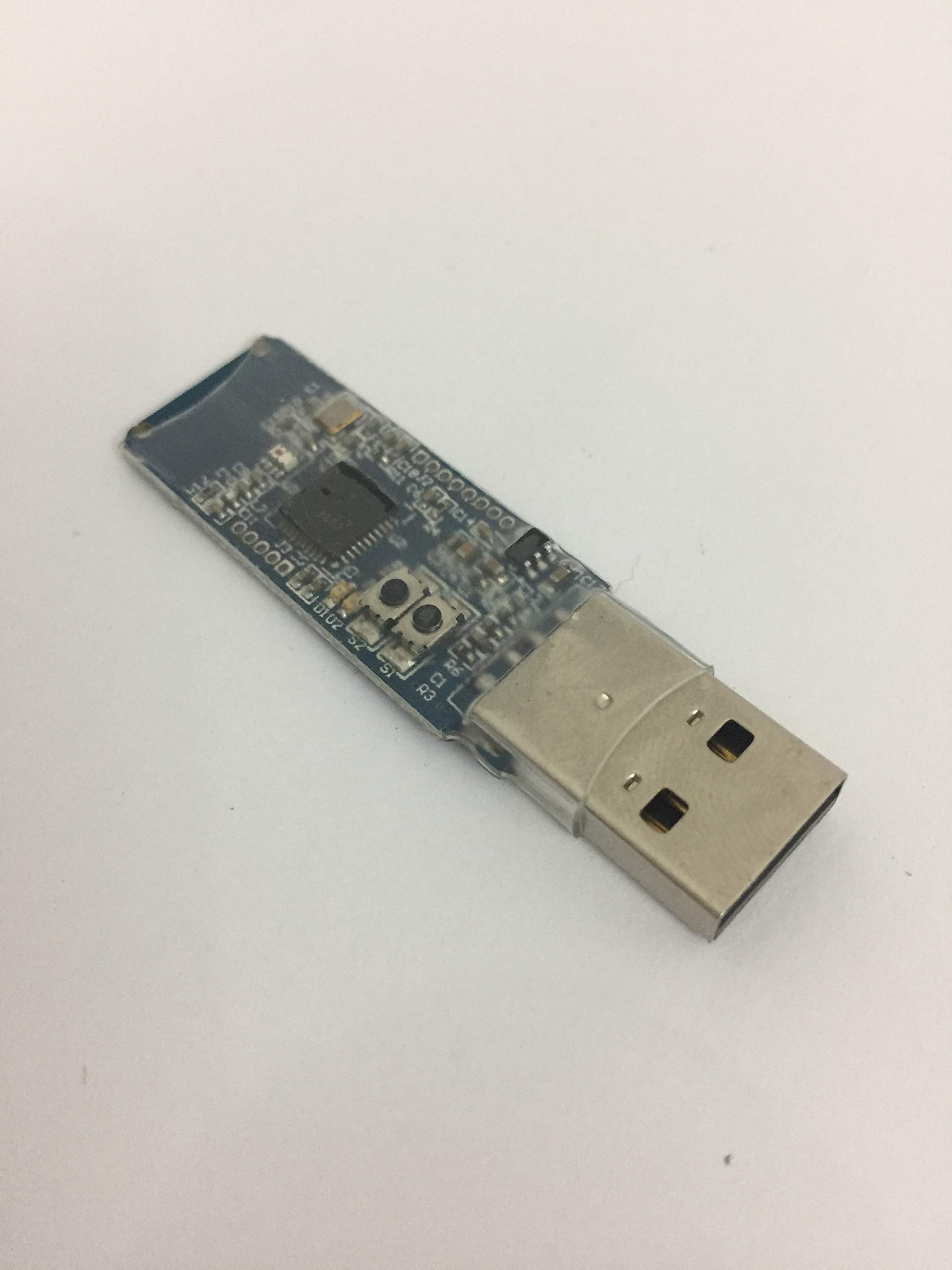

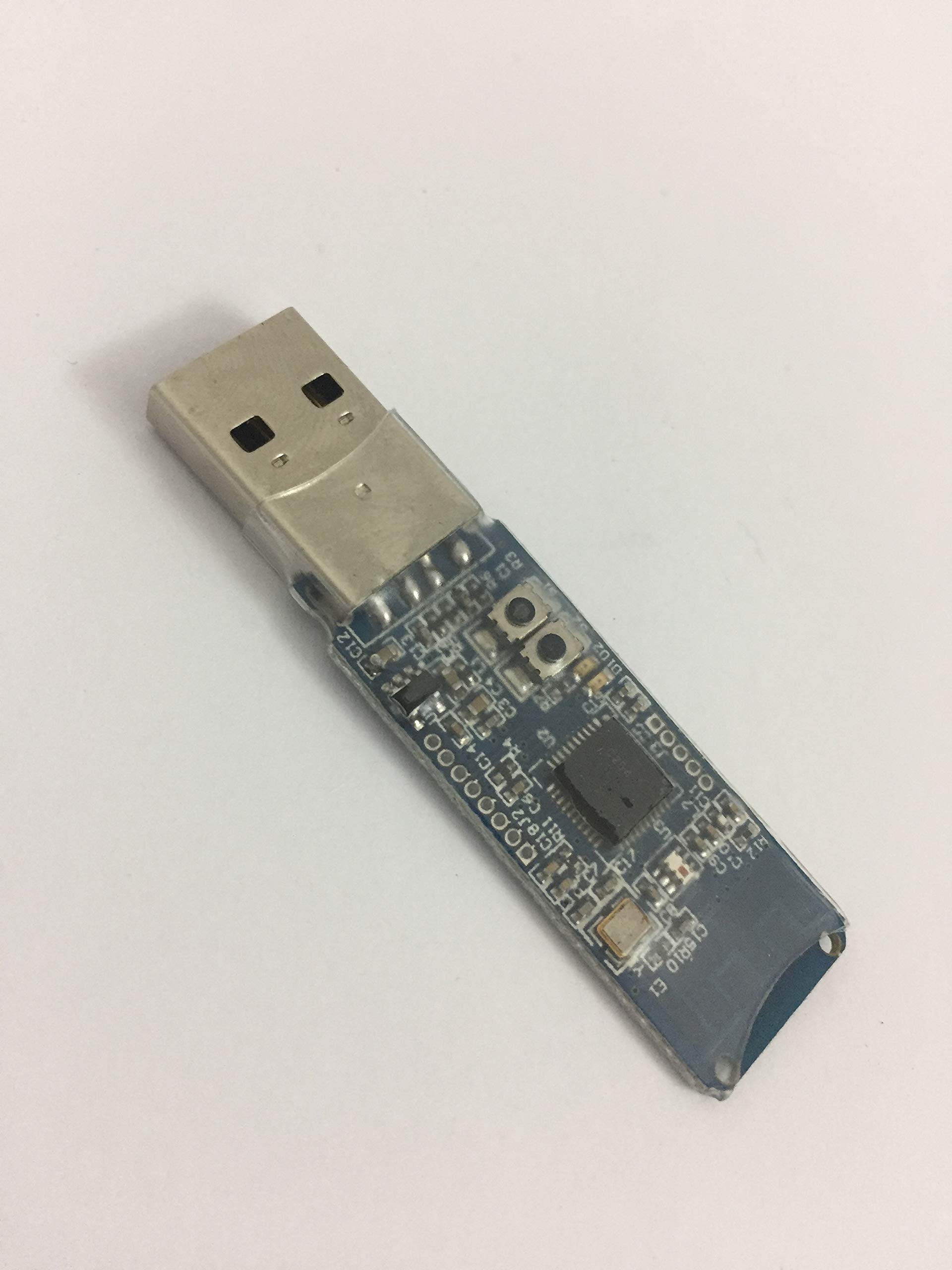

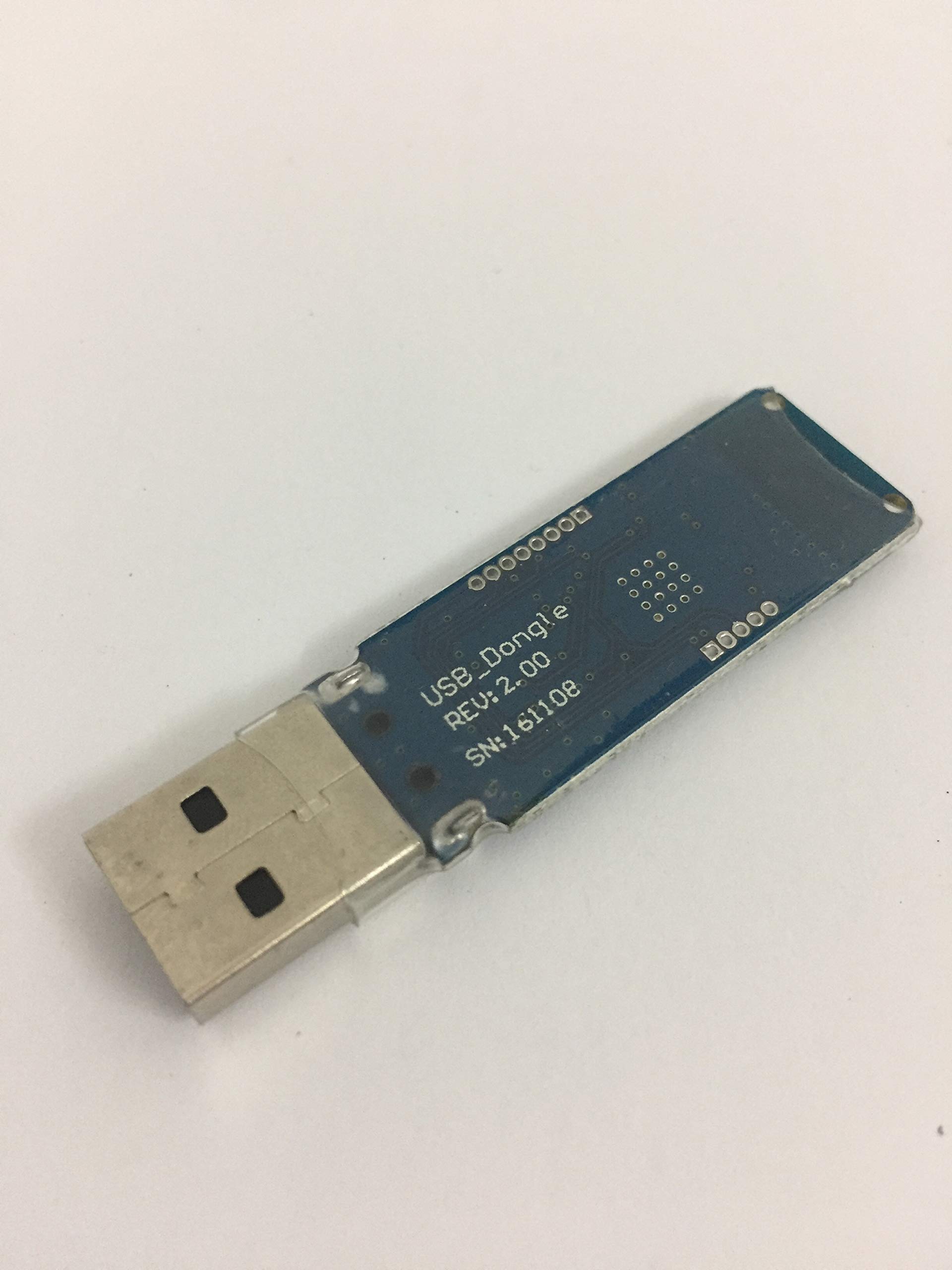

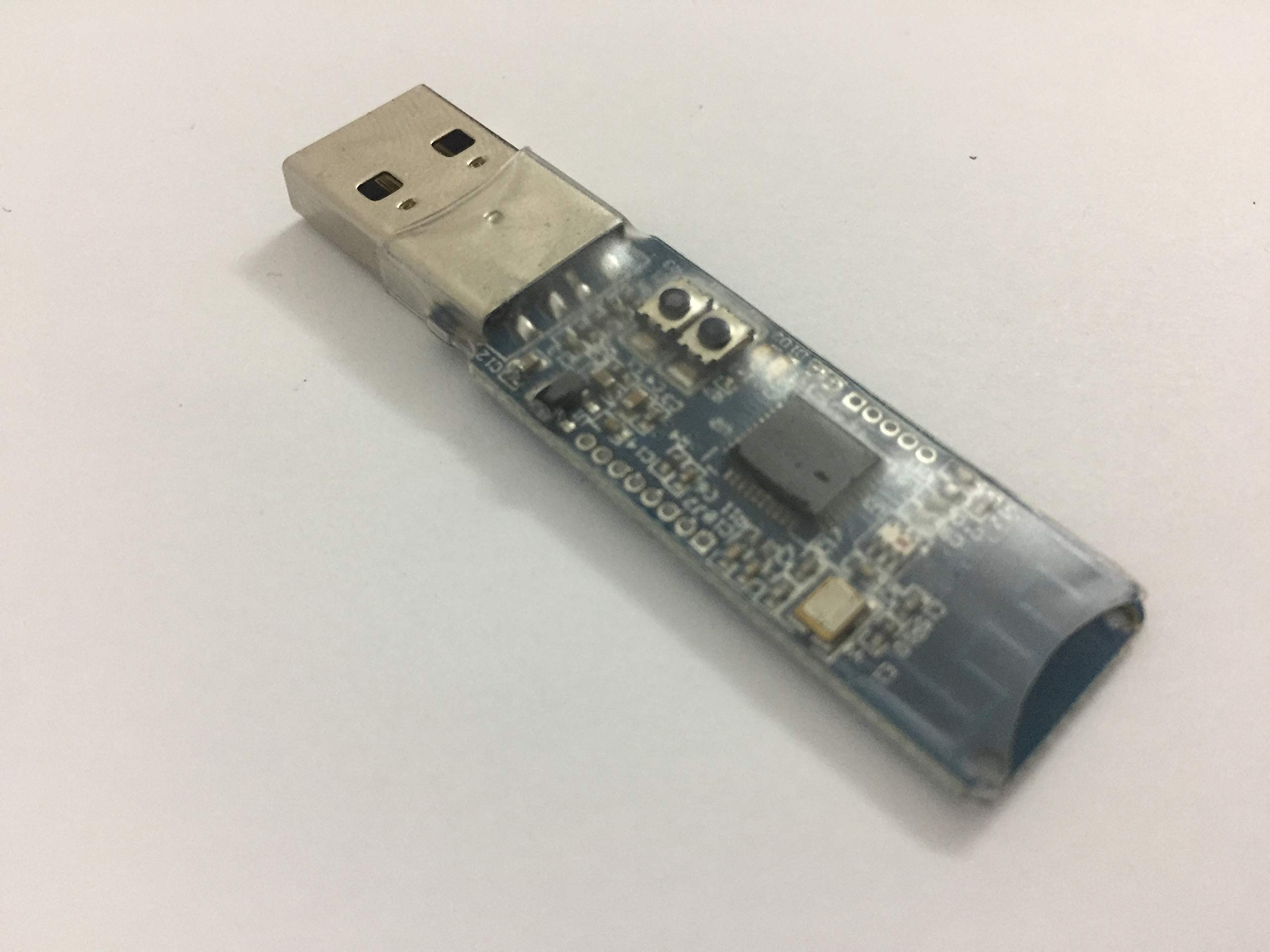

Low-power Bluetooth 4.0 CC2540 USBdongle with transparent heat-shrinkable tube, product-level development tools, cost-effective, excellent production, stable and reliable. Used as a Btool adapter or ble protocol analysis. The dongle program can be redeveloped using the CC-Debugger+ patch cord. Factory default programming sniffer_fw_cc2540_usb.hex Used as protocol debugging, more technical support data is continuously updated.Bluetooth 4.0BLE cc2540usb-dongle SmartRF Packet Sniffer How to use: Bluetooth 4.0 development, now really hot However, after many friends bought our cc2540 usb-dongle, they all said that they don't know how to use them. In fact, using cc2540 usb-dongle for ble data debugging is not complicated. What we need to understand is that the broadcast of ble can specify the broadcast channel. The broadcast channels are 37, 38, and 39 respectively. However, in the official protocol stack of TI, the three channels are broadcast together by default in the broadcast phase, but Once connected to the host, it only transmits data on one of the channels, so we have to specify one of the channels. The awkward thing is that the channel on this connection is also random. We can grab the connection packet. , fill in the address and channel of the initiator (that is, the host).
